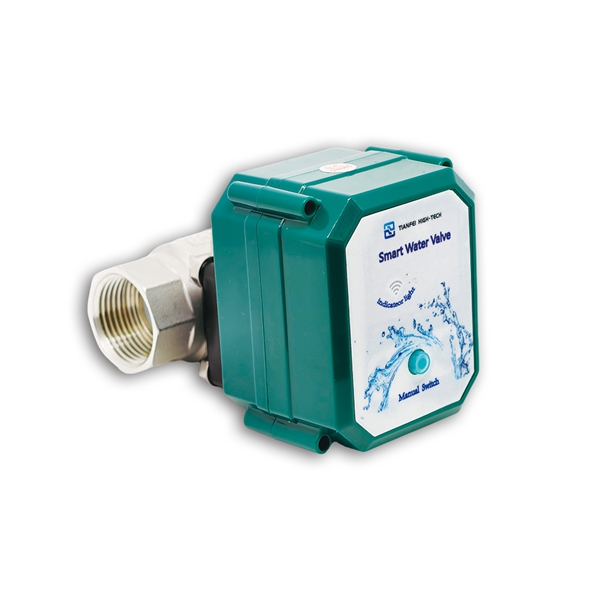

CTF001 WiFi Smart Ball Ventil

Product introduction of CTF001 wifi smart ball valve

Größe: DN8-DN50

Ausgangsdrehmoment: Max. 10 NM

Arbeitsdruck: Max. 1,0 MPa

Arbeitsspannung: DC5V

Arbeitsstrom: Max200mA

Mittlere Temperatur: 0-90℃

Schutzklasse: IP65

WIFI frequency: 2.4G

WiFl wireless connection, mobile APP remote control, real-time status feedback, einfache Installation, plug and play, super torgue, micro high temperature resistance, long life electric ball valve. Valve can realize Angle adjustment, timing switchfow control. High performance industrial computer core, large torque output; Can drive DN8-DN32 ball valve. WlFlwireless connection; 4G frequency transmission, in line with lEEE802.11b /g/n standard; Mobile APP remote control,Real-time status feedback; Control accuracy: 0.5%~1%; Easy to install, plug and play; The electric actuator has twoworking states: timing mode and Angle adiustment mode.

Fabrik echte Szene

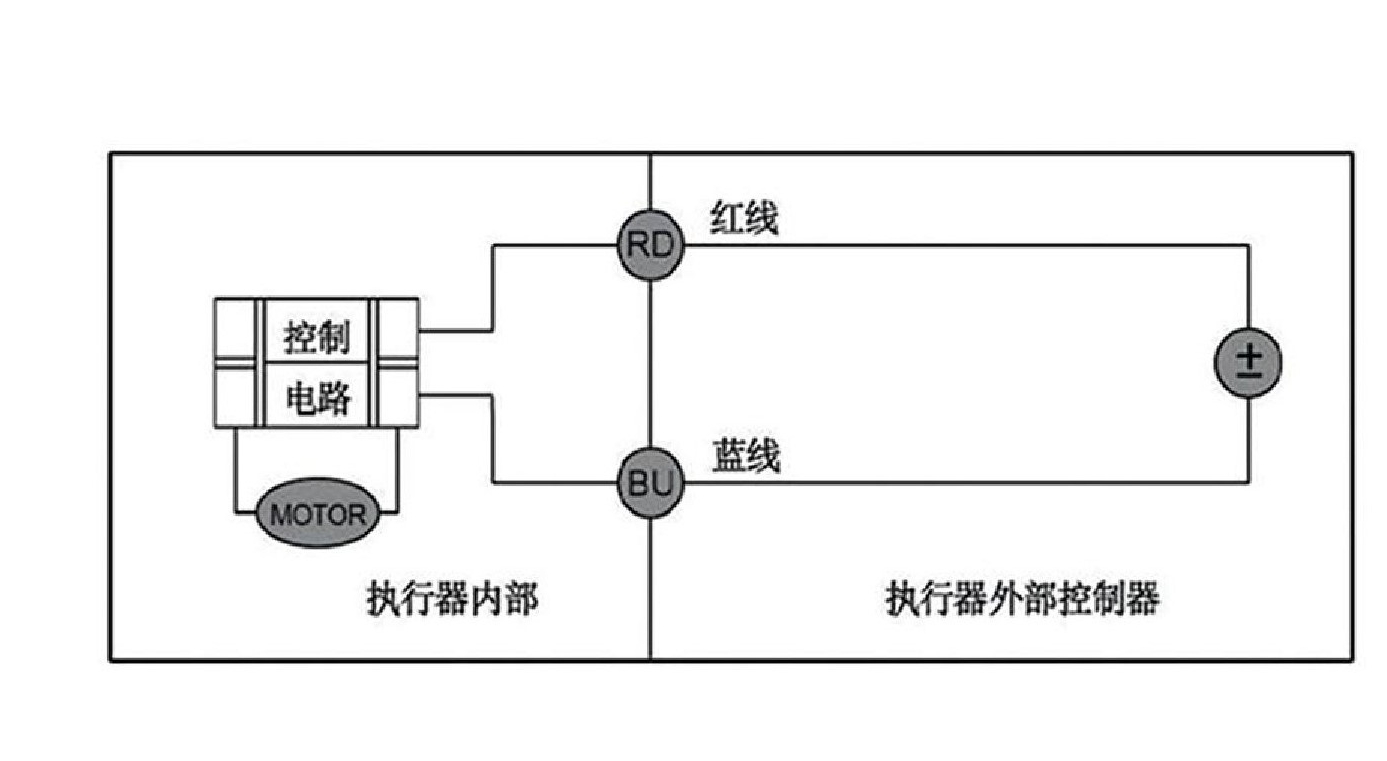

Steuermodus
