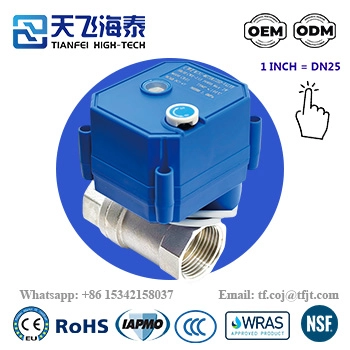

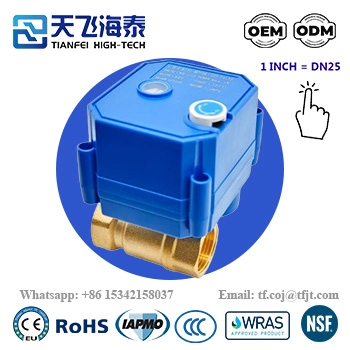

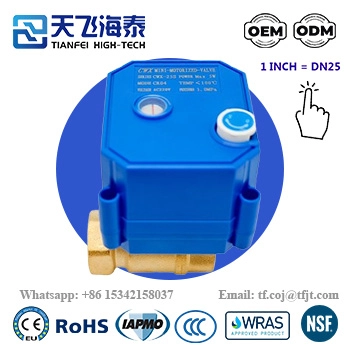

CWX-25S Series Motorized Valve With Manual Override
Tianfei High-tech CWX-25S is a high-performance mini motorized ball valve. It incorporates a reliable manual override function. This feature allows for manual operation during power loss.
Its design ensures stable and reliable performance. PCM and robust metal gears deliver this performance. The valve has a compact and streamlined appearance.
A clear position indicator shows the valve’s open or closed status. As a straightway motorized ball valve, it provides excellent flow capacity. The device maintains a strong IP65 protection class.
Fonctionnalités avancées du produit
Key technical parameters define its capability. The working current stays below 80mA. It can handle a maximum pressure of 1.0MPa.
The unit delivers a solid output torque of 2.5Nm. It operates efficiently with power under 2W. The motorized valve 1 inch opens or closes in less than 8 secondes.
It supports a wide range of voltage options. These include DC3-6V, DC12V, and AC220V. The AC/DC 9-24V and wide-range AC85-265V are also available.
Multiple control modes offer flexibility. Available models include CR01 through CR05.
The motorized ball valve suits various pipeline sizes. The valve offers 2-way (DN8-DN32) and 3-way (DN8-DN20) connection options. It reliably handles media temperatures from 0 to 90°C.
The integrated manual function is simple to use. Always disconnect power before manual operation. Raise the handwheel and rotate it with a gentle motion.
Observe the position indicator to prevent damage. Press the handwheel down fully to restore electric function.
Why choose us?
This versatile motorized valve 1 inch and other sizes fit many applications. IC card water meters and heat meters benefit from its ideal performance.
The unit serves HVAC and fire protection systems well.The water-saving automation system makes effective use of this valve. The valve suits compact industrial control equipment.
Water-saving devices and drinking water systems also employ this excellent valve. Applications include water heaters and solar water heaters. You will find it in washing machines and industrial humidifiers. This reliable motorized ball valve meets diverse industry needs.
