CWX-60P Series: High-Torque Mini Electric Valve
The CWX-60P series delivers high torque in a compact design. This robust CWX-60P motorized valve is a reliable fluid control solution. The valve acts as a core component for seamless integration by system builders.
Superior Product Features

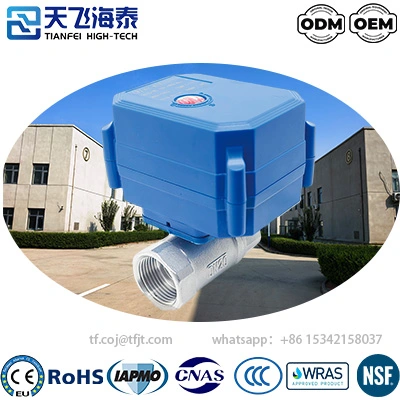

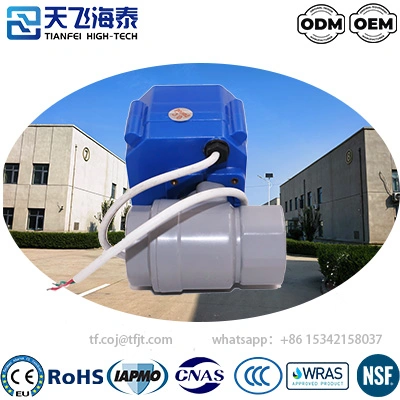

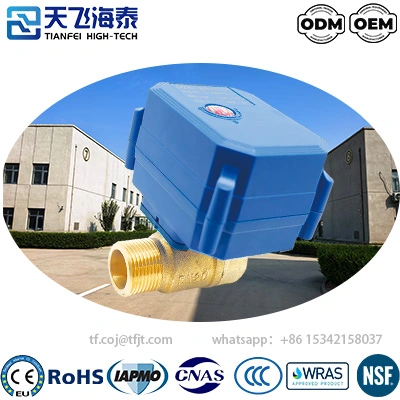

CWX-60p 2 way motorized ball valve features an all-metal gear mechanism. It provides a large output torque up to 6 Nm. The float ball structure ensures zero leakage. Its IP65 rating allows use in humid conditions.

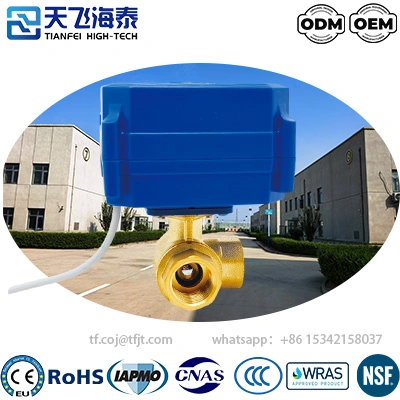

CWX-60p 3 way motorized ball valve model offers versatile flow control.
| Modello | Corrente di lavoro | Pressione | Coppia in uscita | Potenza | Orario di apertura/chiusura |
| CWX-60p | <100mA | Massimo 1,0 MPa | 6Nm | <5W | <8S |
| Voltaggio | DC3-6V, DC12V, ADC9-24V, AC220V, AC85-265V |
| Modalità di controllo | 2-fili 3 fili 5 fili |
| Size | 2 modo: DN8-DN32 3 modo: DN8-DN25 |
| Temp. media | 0-90°C |
| Classe di protezione | IP65 |
| Funzione speciale | Can con segnale di feedback |
Advanced Technical Performance
The CWX-60P motorized valve handles pressure to 1.0 MPa. It completes operation within 8 secondi. The valve works with media from 0°C to 90°C. Sono disponibili più opzioni di tensione. Choose from DC3-6V to AC85-265V.
Flexible Control Options
Questo 2 way motorized ball valve supports various control modes. Options include CR01 to CR05 wiring schemes. Some models provide position feedback signals. Questo 3 way motorized valve enables complex piping configurations.
Ampia gamma di applicazioni
The CWX-60P motorized valve serves multiple industries. Use it in heat energy metering systems. Questo 2 way motorized valve works in HVAC applications. Install it in water conservation projects.
Target di gruppi di clienti
Building automation contractors benefit greatly. Water treatment equipment manufacturers prefer it. Industrial automation suppliers specify this valve. Environmental protection projects utilize its reliability. This valve serves various professional clients.
Panoramica tecnica
The CWX-60P series achieves a masterful balance of high-torque output and compact dimensions. Questo 2 way motorized ball valve replaces solenoid valves effectively. IL 3 way motorized ball valve version handles complex flow paths. Multiple connection types are available. Le dimensioni vanno dal DN8 al DN32. Choose this reliable valve for demanding applications.
