Tianfei High-Tech CTF-001 Electric Ball Valve
Our CTF-001 series is a high-torque electric ball valve. It bridges mini and industrial valve categories. This valve delivers up to 10 Nm of torque. Its compact design is ideal for demanding roles.
It features an all-metal gear transmission. This ensures high reliability and long life. The electric ball valve has a floating ball seal. It guarantees zero leakage in dirty media.
製品パラメータ
| モデル | 動作電流 | プレッシャー | 出力トルク | 力 | 開閉時間 |
| CTF001 | <500だがしかし | Max1.6Mpa | 10ニューメキシコ州 | <22W | <12s |
| 電圧 | DC12V, ADC9-24V, AC220V, AC85-265V |
| 制御モード | 2-wires 3-wires 5-wires 6-wires |
| 大きさ | 2 方法: DN8～DN50 3 方法: DN8-DN32 |
| 中温度 | 0-90℃ |
| 保護クラス | IP65 |

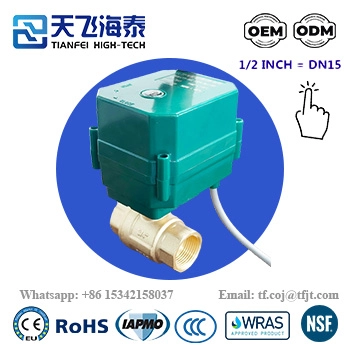

| バルブ材質 | 真鍮; ステンレス鋼; UPVC |
| 特別な機能 | マニュアル機能付き |

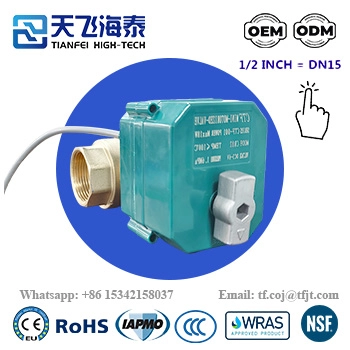

It combines electrical and mechanical stops for repeatable positioning. This provides accurate and consistent positioning. の 1/2 inch electric ball valve model is available. It fits standard pipeline connections perfectly.

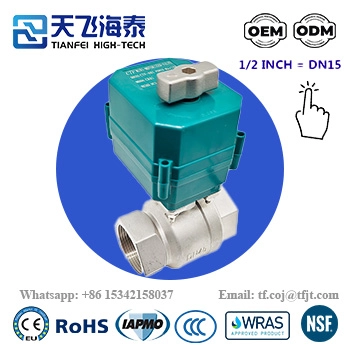

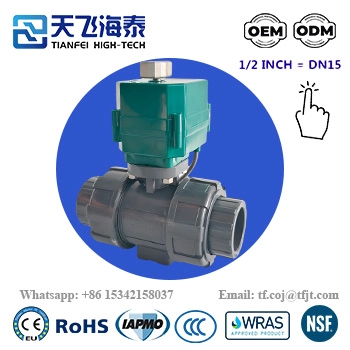

The actuator interface follows the ISO5211 standard. This offers flange types FG3 and FG5. Users can select various valve bodies easily. Valve body is available in brass, ステンレススチール, and UPVC for different corrosion resistance needs.
This electric ball valve has an IP65 protection rating. This actuator maintains stable operation under high humidity conditions. The built-in manual override permits immediate response to power failures.
The valve actuation time is under 12 秒. Its mechanical life exceeds 50,000 サイクル. This robust electric ball valve handles up to 1.6 MPa pressure. The medium temperature can be ≤100°C.
It supports multiple voltage inputs: 5v, 12v, and 24V. Wiring options include 2, 3, 5, または 6 ワイヤー. Various control modes are available. Models with feedback signals provide enhanced control.
の 1/2 inch electric ball valve is a common selection. It serves well in standard industrial piping. This valve serves diverse industrial applications. These include chemical processing and water treatment.
Tianfei Hgh-tech’s electric ball valve can replace solenoid valve. It operates reliably in demanding high-pressure environments.
This electric ball valve suits harsh environments. Its robust construction ensures dependable performance. The CTF-001 is a versatile and powerful solution.
