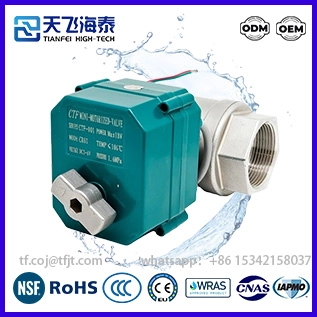

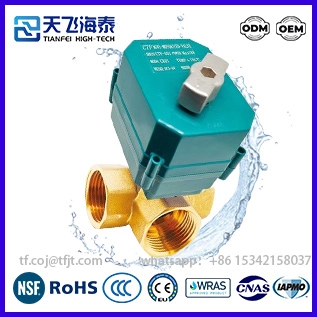

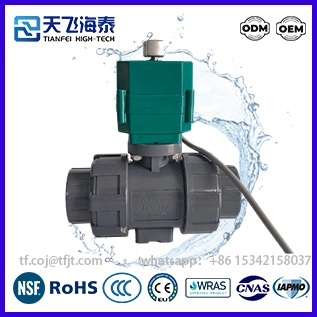

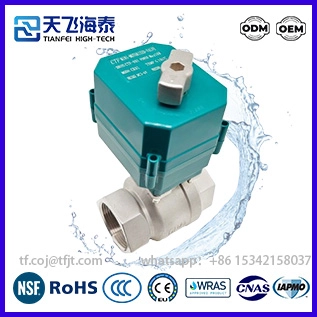

Tianfei CTF-001 Large-Torque Electric Motorized Ball Valve
Tianfei High-tech CTF-001 series represents a transitional electric ball valve category. It effectively bridges compact and industrial-scale applications. This motorized ball valve generates torque outputs to 10 นิวตันเมตร. Its space-efficient design suits challenging installation environments.
Product introduction
ขนาด: DN15-DN50
แรงบิดเอาท์พุต: Max10NM
ความดัน: สูงสุด 1.6Mpa
แรงดันไฟฟ้า: DC3-6V, ดีซี12วี, ADC9-24V, ไฟ AC220V， AC85-265V
ระดับการป้องกัน: IP65
เวลาเปิด/ปิด: <12S
An all-metal gear transmission system provides core drive functionality. This construction guarantees extended operational longevity. The motorized ball valve incorporates a floating ball sealing mechanism. This design prevents fluid leakage in contaminated media systems.
Dual electrical and mechanical limit switches ensure positioning accuracy. This system maintains consistent performance across cycles. Our motorized ball valve version offers standardized connectivity. It integrates seamlessly with conventional pipeline configurations.
Actuator mounting complies with ISO5211 international standards. Available flange options include FG3 and FG5 types. Material selection encompasses brass, สแตนเลส, และยูพีวีซี. This motorized ball valve adapts to various media requirements.
Environmental protection meets IP65 standards. Our motorized valve performs reliably in high-humidity conditions. Integrated manual override enables emergency operation. This feature provides backup during power interruption events.
แอปพลิเคชัน
- Heat energy meters provide accurate energy consumption data.
- Auto water treatment system, industrial mini auto equipment (featuring motorized valve technology)
- We supply advanced water-saving equipment for various applications.
- Components are ideal for HVAC fan coil systems.
- การบำบัดน้ำเสียและการควบคุมตะกอน.
- ระบบควบคุมของไหลอุตสาหกรรมหนัก.
- การแปรรูปทางเคมีและการจัดการสื่อที่มีฤทธิ์กัดกร่อน.
