Tianfei high-tech CWX-25S motorized ball valve 120v
Miniature Motorized Ball Valve With Manual Override
A Tianfei High-Tech’s CWX-25S is a small motorized ball valve with manual override function. This 120v ball valve is suitable for applications requiring standby operation. It features a compact design and a clear position indicator.
Key Features and Specifications
This motorized ball valve 120v utilizes PCM and metal gears for stable and reliable operation. Even during a power outage, the manual override maintains valve operation.
It features a high-flow, straight-through ball valve design with an IP65 protection rating.

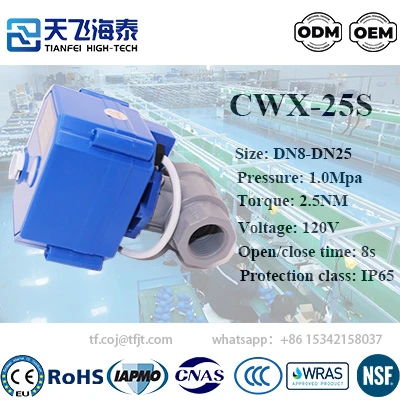

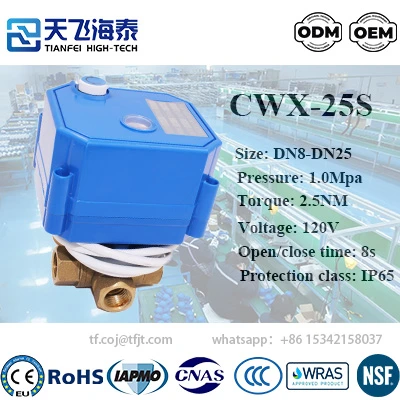

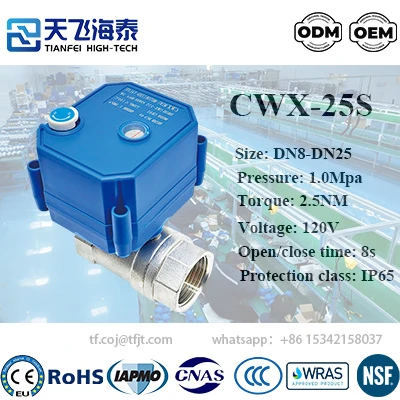

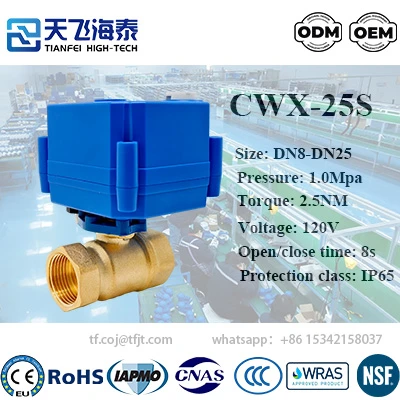

Main specifications are as follows:
- Supports multiple voltages:
Fixed voltage: 12วี, 24วี, 220วี
Wide voltage: DC9-24V, AC85-265V - Medium temperature range: 0~90℃
Diameter selection: DN8~DN25 - Operating current: <80MA
- Valve body material: 304/316 Stainless steel, ทองเหลือง, ยูพีวีซี
- แรงบิดเอาท์พุต: 2.5นิวตันเมตร
- Operating pressure: Maximum 1.0MPa
- พลัง: <2ว
- เวลาเปิด/ปิด: <8 วินาที
Position indication and manual operation
The position indicator clearly shows the motorized ball valve’s open/closed status.
- Disconnect the power before manual operation.
- Pull the handwheel upwards and rotate it for manual control.
- Press the handwheel downwards to return to electric mode.
Users can easily identify the on/off status of the CWX-25S motorized ball valve.
Technical Features
This motorized ball valve de-energizes automatically when fully open or closed. It supports up to 100,000 operating cycles. Dual electrical and mechanical limits maintain accurate positioning. A floating ball structure guarantees zero leakage.
This motorized ball valve provides flexible power options. It includes a 120V version and a multi-voltage model covering DC3-6V to AC265V.
CWX-25S Solution
Water equipment manufacturers: Suitable for water heaters and water treatment equipment. Compact design saves installation space. Low power consumption reduces operating costs.
Building Management: Our motorized ball valve Provides high reliability for HVAC and fire protection systems. Manual operation ensures continuous operation. Visual indicators facilitate maintenance and repair.
Industrial Automation: Provides precise control system adjustment. Our valves adapt to different power environments. Manual operation prevents downtime losses.
Educational Water Conservation Projects: Low-voltage operation ensures campus safety. Visual indicators facilitate teaching demonstrations.
Why choose the CWX-25S Motorized Ball Valve?
Reasons to Choose CWX-25S: Tianfei High-Tech’s CWX-25S combines high-efficiency electric operation with reliable manual operation. Clear indicators enhance the user experience, making it an ideal choice for various flow control applications.
