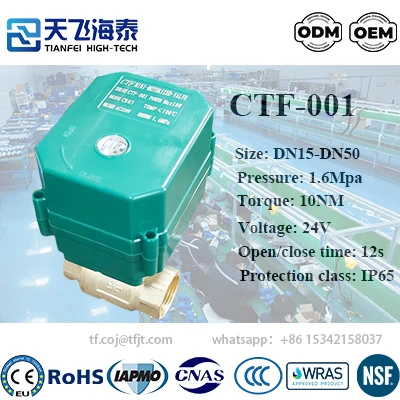

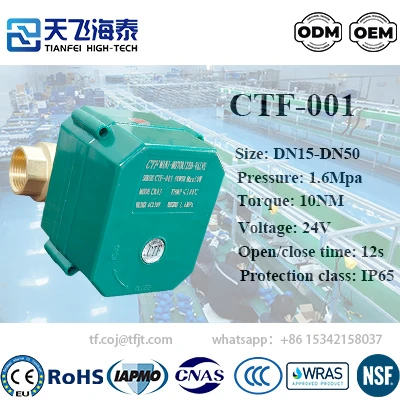

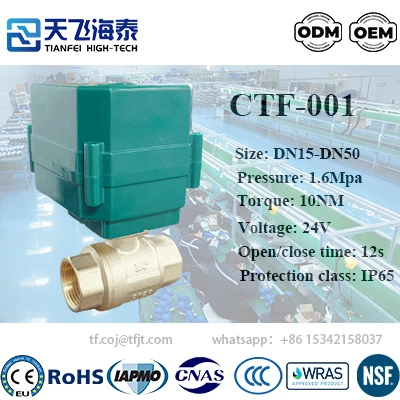

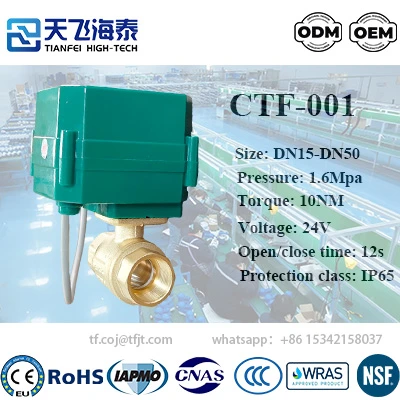

Ctf-001: 10.0NM Output Torque Motorized Ball Valve 24V
Tianfei high-tech CTF-001 series large-torque motorized ball valve :
It delivers robust industrial-grade performance. This motorized valve features a compact and simple design. Its all-metal gear drive ensures extreme reliability. It produces a large torque output up to 10 Nm.
This motorized ball valve 24V is highly versatile. It acts as a perfect intermediate-grade solution. The valve uses a reliable floating seal structure and prevents dripping effectively. It performs reliably in demanding industrial environments.
Le specifiche chiave includono:
The actuator incorporates electrical and mechanical limit switches.This guarantees accurate and consistent positioning. The actuator connection follows the ISO5211 standard. Choose from FG3 or FG5 flanges easily.
The valves offer material flexibility with Brass, Acciaio inossidabile, and UPVC bodies to suit various applications.
- tensioni strette: 12V, 24V, e 220 V
- ampie tensioni: ADC9-35V, AC85-265V
The IP65-rated housing provides excellent protection, ensuring reliable operation even in humid environments. The valve features a manual override for emergency use.
CTF001 motorized valve has a service life exceeding 50,000 cicli. The actuator achieves a full open/close cycle in under 12 secondi.
This powerful electric valve can handle a variety of media. The medium temperature can reach up to 100°C, and it can withstand pressures up to 1.6MPa. The 24V model has a current draw of less than 100mA, and the maximum motor power is 22W.
La CTF-001 series is suitable for a variety of applications. This is ideal for industrial automation systems. The valve delivers reliable performance in water treatment and distribution networks. It performs excellently in irrigation and agricultural control.
Our motorized valve is suitable for chemical dosing systems. La CTF-001 motorized valve integrates seamlessly into commercial HVAC systems and energy stations. The valve is ideal for food and beverage processing machinery. It also reliably serves various OEM and ODM applications.
Solutions of CTF-001 Valvola a sfera motorizzata
- Produttori di attrezzature per l'acqua
Tianfei high-tech valves are ideal for integration into water heaters. Our space-saving design optimizes compact layouts. With minimal power requirements, they contribute to lower energy expenses. This facilitates straightforward installation for manufacturers.
- Gestione degli edifici
In HVAC and fire safety applications, this motorized ball valve ensures consistent performance. An integrated manual override maintains valve functionality during emergencies. The clear position indicator aids maintenance personnel in quick diagnostics and routine checks.
- Automazione industriale
The valve enables accurate regulation in automated control systems and industrial machinery. It supports various voltage inputs for adaptable use. The manual operation feature safeguards against production interruptions, supporting manufacturing processes.
Why choose the CTF-001?
Tianfei High-Tech CTF001 ball valve delivers enduring performance. It provides precise control and powerful torque. Choose the CTF-001 to meet your demanding project needs. It ensures reliable performance everywhere.
