CWX-25S: Electric 24VDC Ball Valve With Sostituzione manuale
Tianfei High-tech’s CWX-25S is a mini electric ball valve equipped with manual control function. This valve boasts stable and reliable performance and employs a PCM and metal gear design.

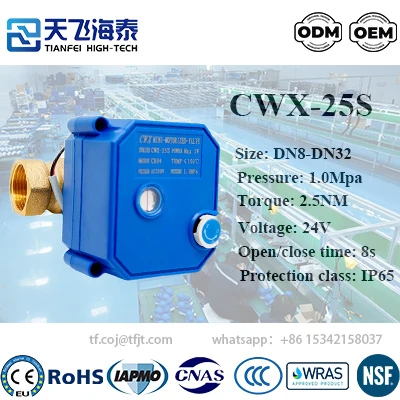

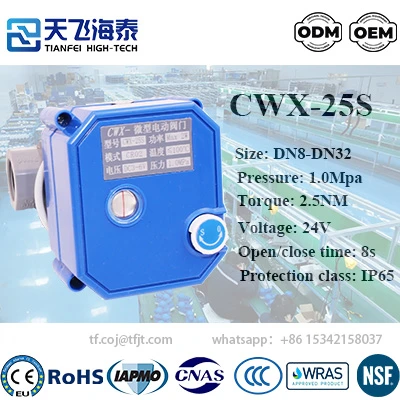

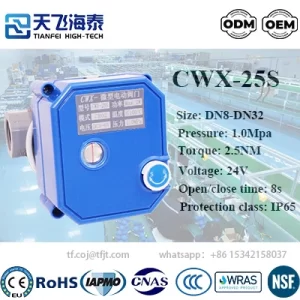

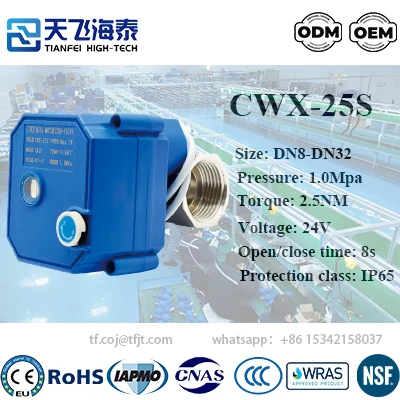

This high-efficiency ball valve can operate at 24VDC. Its working current remains below 80mA with a power consumption under 2W. The unit delivers an output torque of 2.5 Nm. The valve achieves a full cycle in under 8 secondi.
Le specifiche chiave includono:
CWX-25S electric ball valve can handle media temperatures from 0-90°C. Le dimensioni disponibili vanno dal DN8 al DN25.

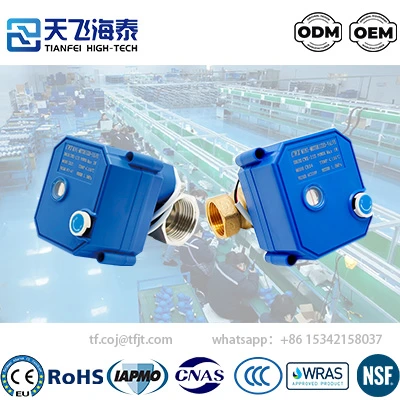

This compact electric ball valve has a position indicator that clearly shows whether the valve is open or closed. It features a straight-through ball design for high flow rates. The maximum working pressure is 1.0 MPa.
Its main feature is manual control functionality. Anche durante un'interruzione di corrente, the manual control function continues to operate normally.
- Primo, disconnect all power before manual operation.
- Poi, pull up on the handwheel and gently turn it to the desired position.
- Finalmente, press the handwheel down to resume electric operation.
The valve has a robust construction (IP65) even in harsh environments. It handles media across a temperature range of 0°C to 90°C. This is a versatile and durable component.
This 24V electric ball valve has a wide range of applications and is ideal for IC card water meters. This unit functions as a key component for enhancing energy efficiency and safety in metering and protection systems.
As a reliable component, it serves a wide range of equipment. It enables precision in industrial micro-automation and agricultural irrigation control. The valve also ensures dependable operation in water heaters, solar systems, and other water-saving devices.
Perché scegliere il CWX-25S?
Tianfei CWX-25S series provides versatile connection configurations to meet diverse installation requirements. Available in sizes from DN8 to DN32, it supports both two-way and three-way (T-port) models.
Users can select between full-bore and reduced-bore designs, along with internal or external thread connections. The valve’s robust design provides outstanding operating uptime. It directly boosts productivity by making your automation more reliable.
